Vibrationsdämpare, Maskinskor

Novibra® type RA and Metalastik® type Fail Safe EF For effective isolation of vibrations and noise from machines with rotating machine parts, e.g. compressors, pumps, internal combustion engines, industrial and marine generator sets, generators, fans and converters. Also suitable for presses, punches and other workshop machines.
RA and EF utilize the rubber profile in shear and pressure, which gives good vertical flexibility and at the same time the advantage of horizontal stability. At normal speeds of approx. 1500 rpm gives the RA and EF types an insulation degree of 75-85%. Better insulation is obtained with the options RAEM and M. A unique construction and state-of-the-art production methods make Novibra® type RA and Merralastik type EF high-performance insulators with a number of advantages: Corrosion protection that provides resistance to demanding environments both on land and in marine applications (Fe/Zn8C according to ISO 2081). Featuring a built-in fail-safe design with resilient stops as standard, making the RA and EF ideal for mobile and marine applications. The RA/EF isolators can absorb single shock loads of up to 5 g, at the hardness of 60° IRH. The insulator withstands shock loads of up to 2 g without permanent deformation. Clear and durable product labeling ensures safe identification even after many years of use.

Type M is recommended above all where you want a soft suspension and a high degree of insulation for compressors, cooling and comfort units, pumps and fans. By allowing a large spring travel, it is also very suitable for use for shock isolation as well as for passive isolation, for example when protecting instruments, measuring devices, scales and for other sensitive equipment.

For machines that cannot be screwed to the floor or have the possibility to move, such as office machines, sewing machines and scales.

Cylindrical vibration dampers are simpler and robust rubber elements. Suitable for use in a wide range of applications, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors, etc. Models A, B and C can also be mounted vertically (with reduced load). Models D and E can also be used as grant buffers. Made of natural rubber in hardness B, 60-65 IRH.
KD = Convex shape.

Impact buffer, type ANB, is used to effectively dampen moving machines or machine parts, which need to be slowed down in their movement. Examples of areas of use are: trolleys, traverses, cranes, levers, falling goods.

Area of ??use and properties:
Cylindrical vibration dampers are simple and robust rubber elements, 55°Shore. Suitable for use in a wide range of applications, e.g. insulation of fans, pumps, air conditioners, apparatus cabinets, electric motors, compressors, etc.
Type D: With screw
Type K/D: Conical with screw.< BR>Type KP/D: Conical pointed with screw
Type E: With internal thread.

For most machines with vibrations. Type piston engines (compressors and internal combustion engines), electric motors, mills, etc. Also suitable for punches and press tools and where the requirements are high for maximum vibration isolation. The design of the damper provides a maximum degree of isolation. Corrosion insulation protected (Fe/Zn 8C according to ISO 2081) Strong shock protection that can withstand traction force up to 5g temporarily and with springy stops.

For most machines with vibrations. Type piston engines (compressors and internal combustion engines), electric motors, mills, etc. Also suitable for punches and press tools and where the demands are high on maximum vibration isolation. The design of the damper provides a maximum degree of insulation. EM stands for extra soft. Corrosion-protected (Fe/Zn 8C according to ISO 2081) Strong shock protection that can withstand traction force up to 5g temporarily and with springy stops.

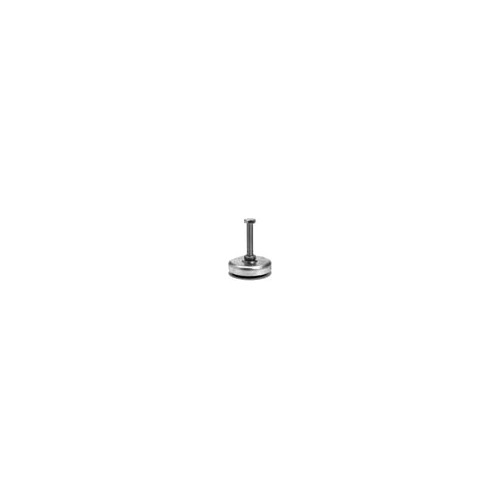

Suitable for lathes, milling machines, punching machines, grinding machines and presses, etc. With the height adjuster of the TF dampers and low installation height provides a simple and problem-free machine setup without fixing to the floor. The rubber body provides good friction against the floor. The rubber is oil and chemical resistant and all metal parts are electro-galvanized and chromated as corrosion protection.

Användningsområde och egenskaper:
Lämpliga för svarvar, fräsmaskiner, stansmaskiner, slipmaskiner, pressar etc. Med nivelleringsskruv för reglering av höjden. Kan nivelleras så långt skruven tillåter. Ger enkel montering utan fastbultning. Maskinparken blir flexibel. Gummikroppen är oljebeständig. Denna ger största möjliga friktion och hindrar maskinen ifrån att "vandra". Tack vare det lackerade utförandet lämpar sig maskinskon även för montering i krävande miljöer.

A complementary range of cylindrical dampers for a range of different applications. They can be loaded either in compression or shear or a combination, taking into account the specific requirements of the application in question. Manufactured in natural rubber, hardness 40° IRH or 60° IRH.

A complementary range of cylindrical dampers for a range of different applications. They can be loaded either in compression or shear or a combination, taking into account the specific requirements of the application in question. Manufactured in natural rubber, hardness 40° IRH or 60° IRH.

A complementary range of cylindrical dampers for a range of different applications. They can be loaded either in compression or shear or a combination, taking into account the specific requirements of the application in question. Made of natural rubber, hardness 60° IRH.

Simple and robust rubber elements suitable for use in a large number of areas of use, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors, etc. Can also be mounted vertically (with reduced load). Manufactured in natural rubber in hardness A, 40-45 IRH and hardness B, 60-65 IRH.

Area of ??use and properties:
Cylindrical vibration dampers are simple and robust rubber elements, 55°Shore. Areas of use: e.g. insulation of fans, pumps, air conditioners, apparatus cabinets, electric motors, compressors, etc.

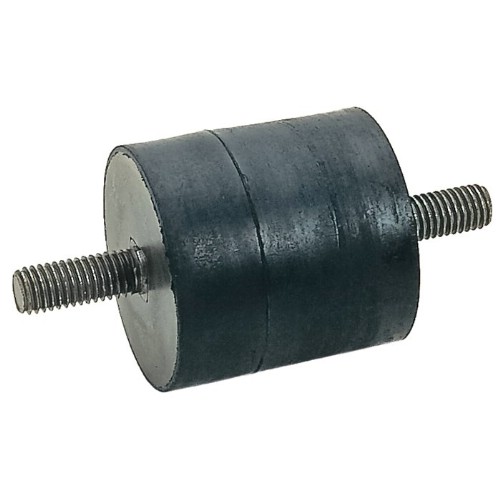

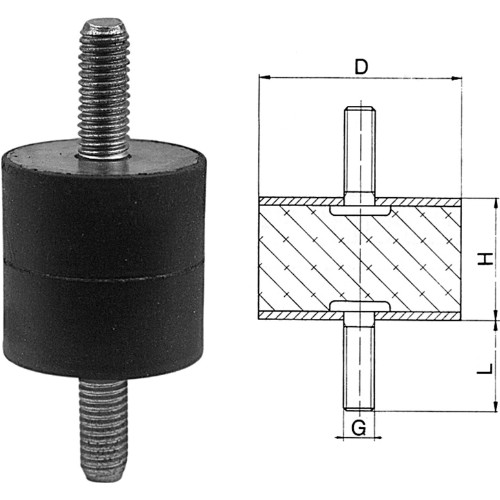

Type A: With screw/screw.

Simple and robust rubber elements suitable for use in a large number of areas of use, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors, etc. Can also be mounted vertically (with reduced load). Manufactured in natural rubber in hardness A, 40-45 IRH and hardness B, 60-65 IRH.

Area of ??use and properties:
Cylindrical vibration dampers are simple and robust rubber elements, 55°Shore. Areas of use: e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors etc.

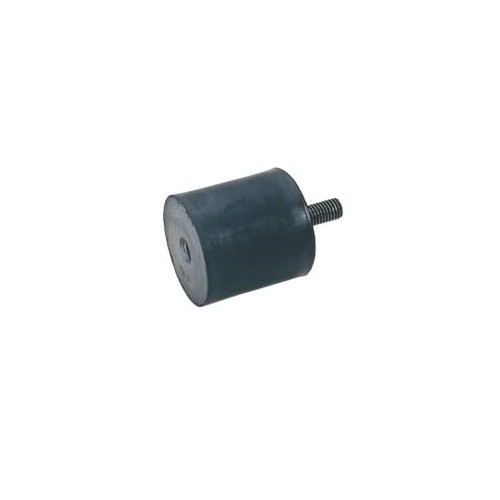

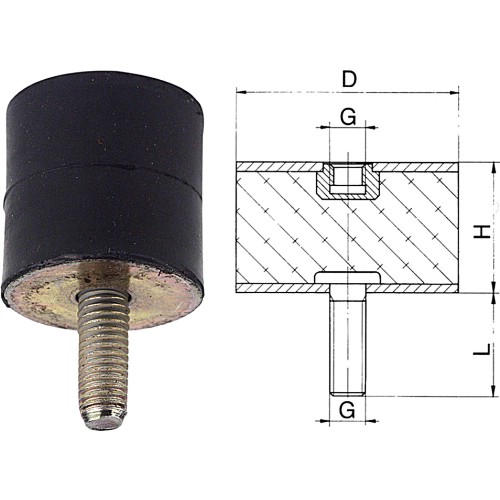

Type B: With screw/inv thread.

Simple and robust rubber elements suitable for use in a large number of areas of use, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors, etc. Can also be mounted vertically (with reduced load). Manufactured in natural rubber in hardness A, 40-45 IRH and hardness B, 60-65 IRH.

Area of ??use and properties:
Cylindrical vibration dampers are simple and robust rubber elements, 55°Shore. Suitable for use in a wide range of applications, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors etc.

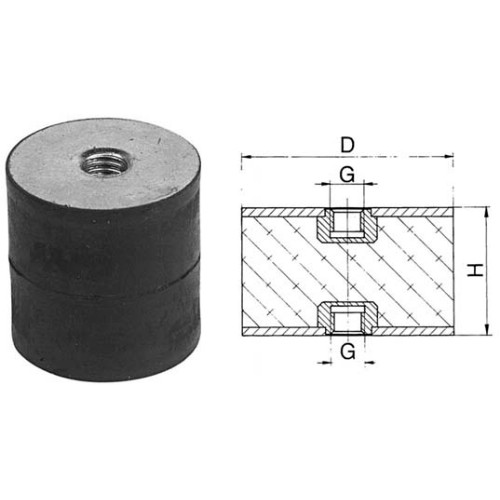

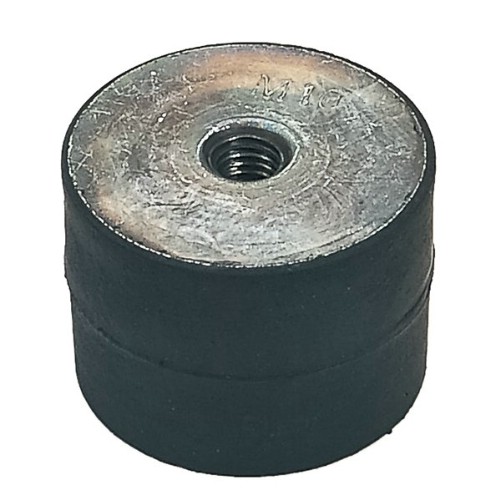

Type C: With inv thread/inv thread.

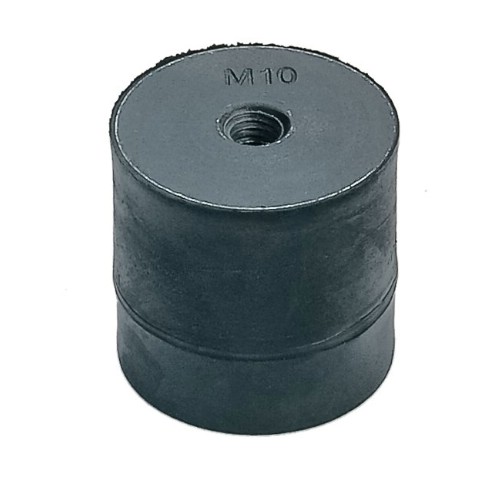

Cylindrical vibration dampers are simple and robust rubber elements. Suitable for use in a large number of areas of use, e.g. insulation of fans, pumps, air conditioning systems, appliance cabinets, electric motors, compressors, etc. Models A, B and C can also be mounted vertically (with reduced load). Models D and E can also be used as grant buffers. Manufactured in natural rubber in hardness A, 40-45 IRH and hardness B, 60-65 IRH.

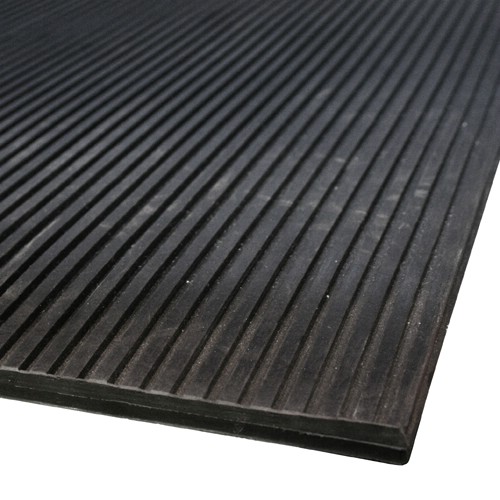

Vibration plate intended for vibration isolation with limited requirements. For example. for isolation of high-frequency vibrations or for high-ranking machines that must be bolted to the base, e.g. pillar drilling machines, industrial fans, transformers. Double design with slats on both sides. Made of oil resistant rubber.
