Grenställ

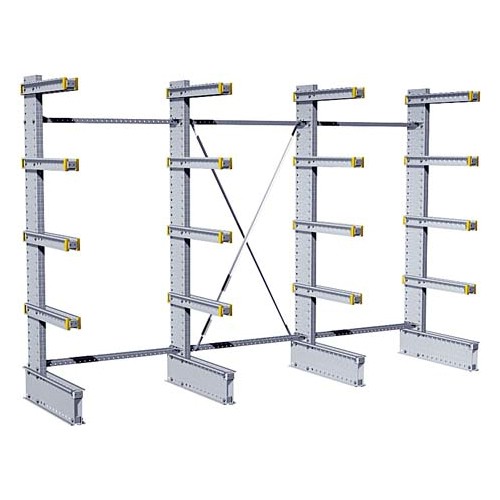

Branch rack for storing bar material, discs, pipes, etc. Made of hot-dip galvanized sheet steel. Individually movable, straight arms. The arms can be fitted with material stops to prevent sliding. When building branch racks, horizontal braces and cross braces are needed on the first section, then horizontal braces on each section and cross braces on every fourth section (see sketch).
Delivered partly as a starting section, partly as a follow-up section for extending the starting section. Branch stand can also be assembled from loose parts to the desired design.
Starting section with single foot. Supplied with 2 columns with single foot, 6 support arms 600 mm, 1 cross brace and 1 pair of horizontal braces. To be completed if necessary with a material stop (not included in the starting section) . Depth 600 mm.
Following section with single foot. Supplied with 1 column with single foot, 3 supporting arms 600 mm and 1 pair of horizontal braces. Completed if necessary with extra material stop (not included in follow-up section). Depth 600 mm.
Starter section with double foot. Supplied with 2 columns with single foot, 2 additional double feet, 12 supporting arms 600 mm, 1 cross brace and 1 pair of horizontal braces. Completed if necessary with extra material stop (not included in starting section). Depth 1200 mm.
Following section with double foot. Supplied with 1 column with single foot, 1 additional double foot, 6 support arms 600 mm and 1 pair of horizontal braces. Completed if necessary with extra material stop (not included in follow-up section). Depth 1200 mm.
Request a quote for larger installations as well as other dimensions and load requirements.
