Borrmaskiner stationära

Belt-driven bench drill with powerful 750 W motor, 12 speeds and drill capacity 1-20 mm. Simple and stable construction that ensures easy operation and long service life. Raised and lowered table with tilt function. Integrated work lighting. Transparent protective screen with micro switch for extra safety. With safety switch and emergency stop in accordance with CE requirements. Supplied with B16 spindle and quick chuck with auto lock. Available in both 1-phase and 3-phase versions.
Model 16 AT with right and left hand (reversible).

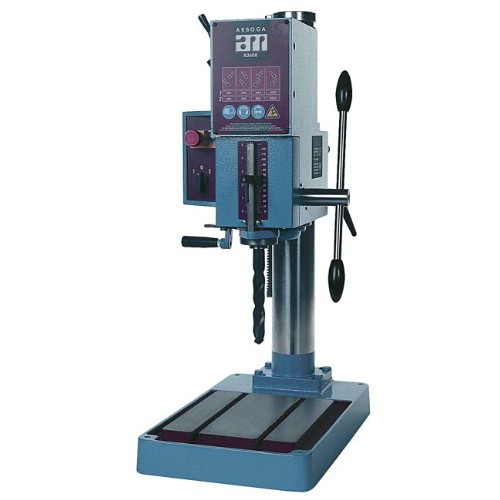

Easily operated bench and pillar drilling machines, built on steel pillars. The drill head and table arm can be swiveled through 360° and can be raised and lowered via a gear rack. With gear drive and a gear box with beveled gears made of steel and fiber material that provides a quiet machine with a minimum of maintenance. Large distance between column and spindle center and long feed movement on the spindle, which allows for large drilling depths. Supplied complete with 2-speed motor, motor protection with zero voltage release and emergency stop - protection class IP 41, built-in wedge chaser and drill protection.
A 2608 B with machined foot plate, T-slot and oil strip.
A 2608 with rectangular table, T-slot, oil strip, unmachined foot plate.
A 2608 T with rectangular table, T-slot, oil strip, unmachined foot plate, flange motor, motor guard with zero voltage release and emergency stop - protection class IP 54.
A 2608 M with rectangular table, T-slot, oil strip and untreated foot plate, mechanical connection of automatic feeding and three-lever hub for manual feeding. The machines are available with a variety of accessories, such as coolant device, lighting and various reversals.

Easily operated bench and column drilling machines, built on a strong steel column. The drill head can be swiveled through 360° and can be raised and lowered via rack. With gear drive and a gear box with beveled gears made of steel and fiber material that provides a quiet machine with a minimum of maintenance. Large distance between column and spindle center and long feed movement on the spindle, which allows for large drilling depths. Supplied complete with 2-speed motor, motor protection with zero voltage release and emergency stop - protection class IP 41, built-in wedge chaser, rectangular table and machined foot plate which have T-groove, oil strip and drill protection.
A 3008 M is equipped with feed gearbox equipped with overload protection that comes into effect in case of excessive drilling pressure and three-lever hub for manual feeding. The machines are available with a variety of accessories, such as coolant device, lighting and various reversals.

The drill head can be raised and lowered with a crank and rotatable 360° around the column to facilitate drilling in different positions. Gears made of steel or woven laminate, which provides quiet operation. Shafts of hardened steel. Coupling devices are hardened. The drill spindle is made of steel and can be mounted with ball and roller bearings. The roller bearing is placed around the spindle cone, which provides a stable setting of the tool. The spindle is balanced with a strong spring. The drill spindle can also be fitted with a threaded spindle nose and locking nut for fastening the chuck. Drill depth stop for spindle feed is mounted on the gear arm. Through this depth stop, three different drilling depths can be obtained at the same working pace. In this way, the entire downward movement of the spindle can be used. The table arm can be raised and lowered and rotated 360° around the pillar. The table is rectangular and as standard equipped with an oil stripe and T-groove. The column is made of steel, which means better rigidity for the machine as well as better precision and minimal deviations from the fixed angle between drill and table. Tool ejector is built-in and facilitates tool changes. Equipped with emergency stop, undervoltage release and motor protection.
1905-9179: Coordinator table FB 101 Work surface 450x242 mm. Length feed 240 mm. Cross feed 160 mm. With center for mounting table arm.
1905-8817: Tool kit MK 3. Machine vise 120 mm. jaws, 2 x T-slot nuts, Chuck 1-13mm B16, Mandrel MK3. Reduction sleeve MK3/MK2. Reduction sleeve MK3/MK1.
1905-9187: Coordinator table FB 102, Work surface 584x242 mm. Length feed 350 mm. Cross feed 160 mm. With center for mounting table arm.

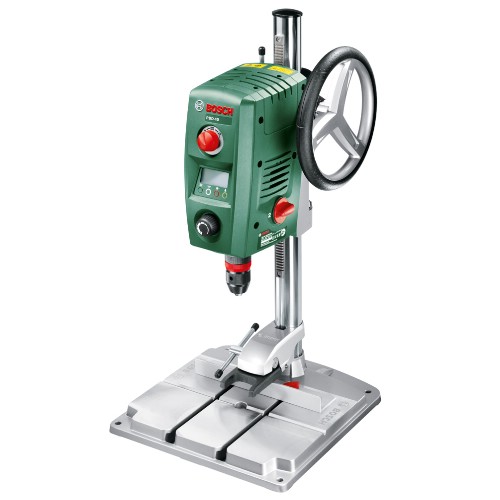

Bench drill with rated power of 710 W. Built-in laser beam that provides guidance. Digital display shows exact drilling depth. LED lighting, quick chuck for toolless drill changes and 2-speed gearbox. Speed ??setting for dosed and material-adapted work. Constant power for precision work.
Standard equipment: Parallel stop and quick clamping.

The drill head can be raised and lowered and turned 0-45° in both directions and the desired angle can be set against a graduated washer. Gears made of steel or woven laminate, which provides quiet operation. Shafts of hardened steel. Coupling devices are hardened. The drill spindle is made of steel and can be mounted with ball and roller bearings. The roller bearing is placed around the spindle cone, which provides a stable setting of the tool. The spindle is balanced with a strong spring. For attachment of fresh chuck, the drill spindle is equipped with a threaded spindle nose. During milling work, the spindle sleeve is locked in the desired position. Drill depth stop for spindle feed is easily adjusted with the locking lever against the scale on the front panel. The machine is equipped as standard with a coordinate table with 3 T-slots and an oil strip. The table can be equipped with automatic length feeding. The column is made of steel, which means better rigidity for the machine as well as better precision and minimal deviations from the fixed angle between drill and table. In the lower part of the stand there is room for installing coolant equipment. Tool ejector is built-in and facilitates tool changes. Equipped with emergency stop, undervoltage release and motor protection.
1905-8817: Tool kit MK 3. Machine vise 120 mm. jaws, 2 x T-slot nuts, Chuck 1-13mm B16, Mandrel MK3. Reduction sleeve MK3/MK2. Reduction sleeve MK3/MK1.

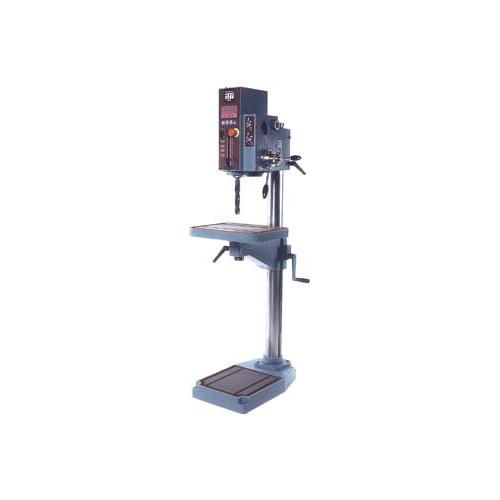

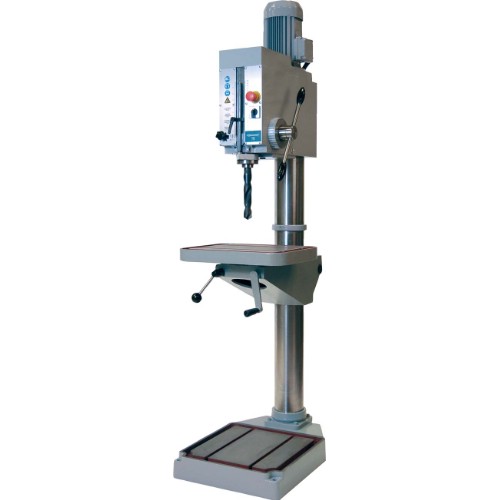

Easy-to-operate pillar drilling machine built on a strong steel pillar. The drill head and table arm can be swiveled through 360° and can be raised and lowered via a gear rack. With gear drive and a gear box with beveled gears made of steel and fiber material that provides a quiet machine with a minimum of maintenance. Large distance between column and spindle center and long feed movement on the spindle, which allows for large drilling depths. Supplied complete with 2-speed motor, motor protection with zero voltage release and emergency stop - degree of protection IP 41, built-in wedge chaser, rectangular table and machined foot plate which have T-groove and oil strip.
A 3808 M equipped with feed gearbox, equipped with overload protection that comes into effect when the drilling pressure is too high and a three-lever hub for manual feeding.
A 3808 ELM equipped with an electromagnetic clutch controlled via the three-lever hub.
The machines can be obtained with a number of accessories, such as coolant device, lighting and various reversals.

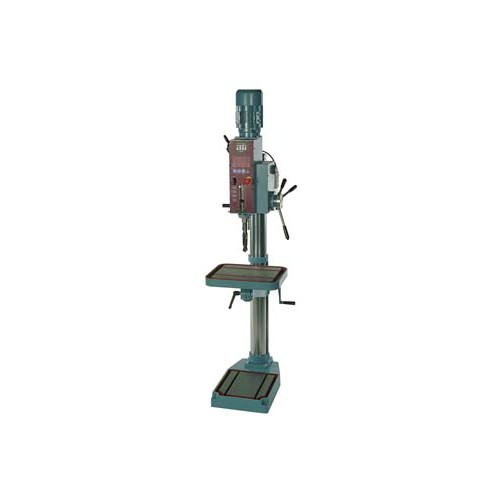

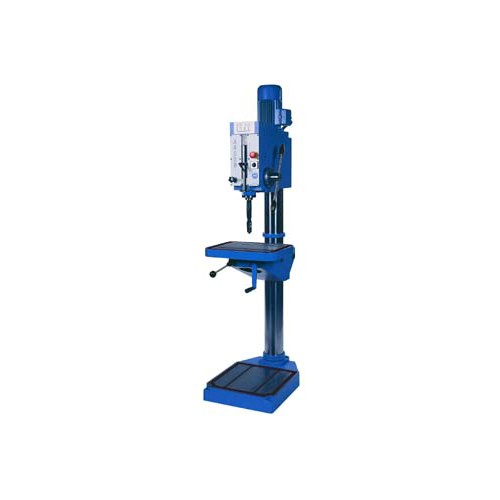

Robust MK 4 machine with large overhang. The crank for raising and lowering the table is retractable. Easy-to-operate pillar drilling machine built on a strong steel pillar. The drill head is permanently mounted, but the table arm can be swiveled through 360° and can be raised and lowered via a gear rack. All maneuvering of the table arm for raising, lowering and locking takes place from the front. With gear drive and a gear box with beveled gears made of steel and fiber material that provides a quiet machine with a minimum of maintenance. Long feed movement on the spindle, which allows large drilling depths. Quick and easy selection of the speed. Supplied complete with 1-speed motor, motor protection with zero voltage release and emergency stop - degree of protection IP 41, built-in wedge chaser, fixed rectangular table and machined foot plate which have T-groove and oil strip.
A 4008 M equipped with feed gearbox , equipped with overload protection that comes into effect when the drilling pressure is too high and three-lever hub for manual feeding.
A 4008 ELM Equipped with electromagnetic clutch controlled via the three-lever hub. The machines can be obtained with a number of accessories such as coolant device, lighting, higher and lower speed range and various reversals.

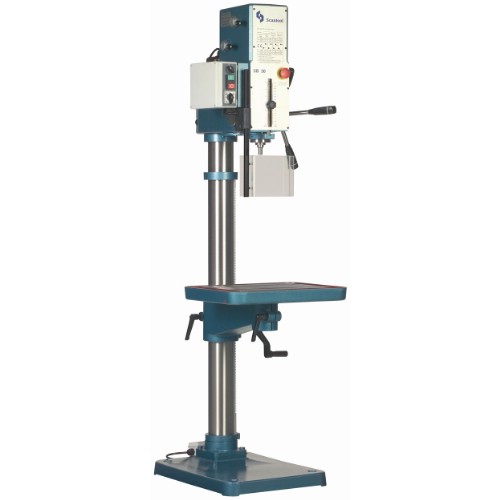

Belt-driven column drilling machine with powerful 1100 W motor, 12 speeds and drilling capacity 1-32 mm. Right and left hand (reversible). Simple and stable construction that ensures easy operation and long service life. Raised and lowered table with tilt function. Integrated work lighting. Transparent protective screen with micro switch for extra safety. With safety switch and emergency stop in accordance with CE requirements. Supplied with B16 spindle and quick chuck with auto lock. 400 V, 3-phase.

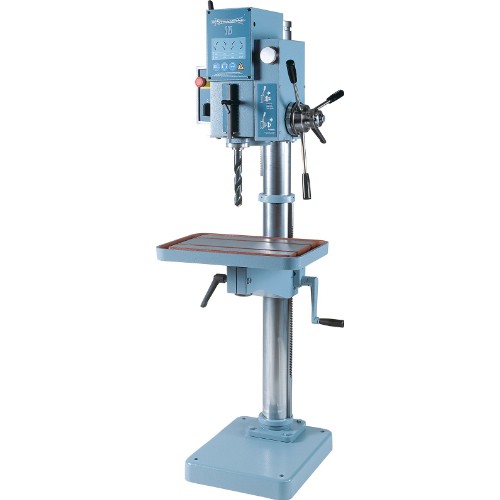

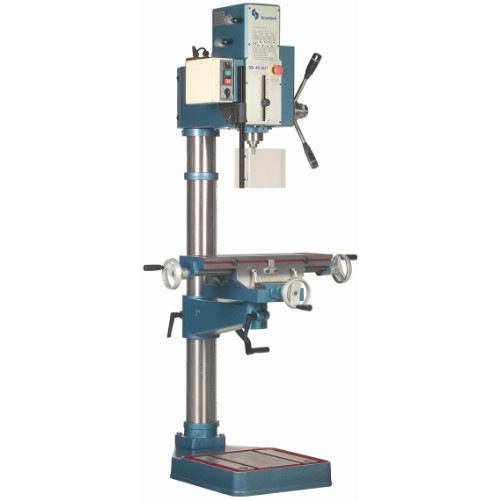

Column drilling machine in a strong construction and with a high finish. Max drilling capacity 32 mm, maximum drilling depth 150 mm. Available with manual or automatic feeding, with or without coordinate table. Clear and simple control panel, for on/off, high and low speed and on/off for coolant. Equipped with separate main switch.

Column drilling machine in a strong construction and with a high finish. Max drilling capacity 42 mm, maximum drilling depth 150 mm. Available with manual or automatic feeding, with or without coordinate table. Clear and simple control panel, for on/off, high and low speed and on/off for coolant. Equipped with separate main switch.

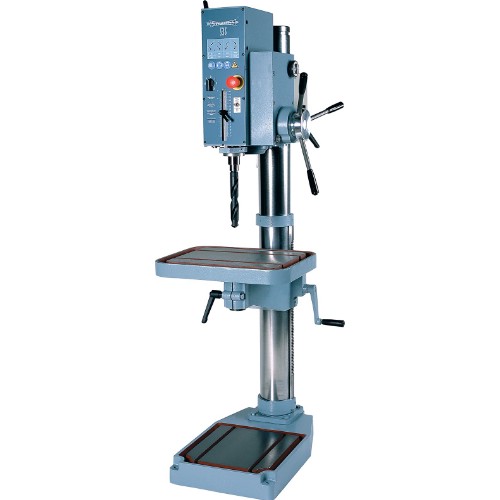

The S35 has a drilling capacity of 35 mm. The construction of the gearbox is our proven technology for the highest possible torque. Both drill head and table arm are rotatable 360° around the column, and can be raised and lowered. The S35 is equipped as standard with a manual reversing switch.
S35M: When the set drilling depth is reached, the spindle automatically returns to the starting position. The feed can also be interrupted manually. To protect the machine when using the machine feed, there is an overload protection that comes into effect when the load becomes too high.
S35ME: Start / stop of the automatic feed is via push buttons, built into the feed levers. Manual and automatic reversal for threading is standard.
1905-9179: Coordinator table FB 101. Work surface 450x242 mm. Length feed 240 mm. Cross feed 160 mm. With center for mounting table arm.
1905-9187: Coordinator table FB 102, Work surface 584x242 mm. Length feed 350 mm. Cross feed 160 mm. With center for mounting table arm.
1905-8932: Tool kit MK 4. Machine vise 150 mm. backs, 2 x T-slot nuts. Chuck 1-13 mm B16, Mandrel MK4. Reduction sleeve MK4/MK3. Reduction sleeve MK4/MK2. Reduction sleeve MK4/MK1.

The drill head is firmly mounted on the top of the pillar and therefore provides good stability. Gears made of steel or woven laminate and beveled gears. This gives a quiet and extra smooth ride. All parts in the gearbox are designed to withstand stress and wear. To protect the feed gearbox in the event of overload, there is a mechanical slip clutch that comes into effect when the load becomes too high. The feed is switched on with a knob. When the set drilling depth is reached, the spindle automatically returns to the starting position. The feed can also be interrupted manually. The drill spindle is made of steel and can be mounted with ball and roller bearings. The roller bearing is placed around the spindle cone, which provides a stable setting of the tool. The spindle is balanced with a strong spring, which makes the machine comfortable to feed by hand. The drill spindle is lockable as standard and can be supplied with a threaded nose for mounting a fresh chuck on request. Setting the drilling depth is done quickly and easily with a heel against a ruler on the front of the machine. The work table is fixed and has a T-slot and an oil strip. The table arm can be raised and lowered and swiveled 360° around the pillar. On request, the table can also be turned 360°. The table is raised and lowered with a crank on the front of the machine. The column is made of steel, which means better rigidity for the machine as well as better precision and minimal deviations from the fixed angle between drill and table. Tool ejector is built-in and facilitates tool changes. The foot plate has been machined flat and provided with T-groove and oil strip. The machine is equipped with emergency stop, undervoltage release and motor protection.
1905-9179: Coordinator table FB 101. Work surface 450x242 mm. Length feed 240 mm. Cross feed 160 mm. With center for mounting table arm.
1905-9187: Coordinator table FB 102, Work surface 584x242 mm. Length feed 350 mm. Cross feed 160 mm. With center for mounting table arm.
1905-8932: Tool kit MK 4. Machine vise 150 mm. jaws, 2 x T-slot nuts, Chuck 1-13mm B16. Mandrel MK4. Reduction sleeve MK4/MK3. Reduction sleeve MK4/MK2. Reduction sleeve MK4/MK1.
1905-9211: Coordinator table MF 4, Automatic long feed. Work surface 800 x 240 mm. Length feed 470 mm. Cross feed 160 mm. With center for mounting table arm.

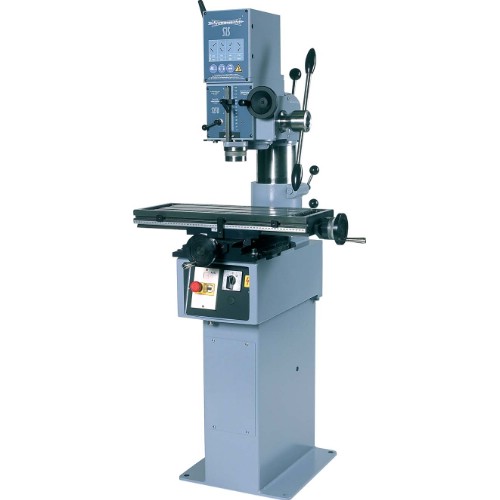

Combined drilling and milling machine. Suitable for repair, maintenance and training purposes as drilling and milling can be carried out in the same tension. The drill head can be raised and lowered and rotatable 0-45° in both directions and the desired angle can be set against a graduated scale. Table, column and drill head are mounted on a heavy welded stand. With gear drive and a gear box with beveled gears made of steel and fiber material that provides a quiet machine with a minimum of maintenance. Quick and easy selection of the speed. The drill spindle is equipped with a threaded spindle nose with a locking nut for attaching the chuck. On the front of the drill head there is a dial for lowering the drill spindle when fine feeding.
A 2508 U Supplied with coordinate table, 2-speed motor and motor protection with zero voltage release - protection class IP 41.
A 4008 U (M) The drill head runs on a column with a dovetail guide and can be raised and lowered with the help of an electric motor. supplied complete with 1-speed motor, motor protection with zero voltage release and emergency stop - protection class IP 41 and coordinate table.
A 4008 UMEquipped with feed gearbox which is equipped with overload protection which comes into effect in case of excessive drilling pressure. Supplied complete with 2-speed motor - protection class IP 41, motor protection with zero voltage release and emergency stop. The machines are available with a variety of accessories, such as coolant device, lighting and various reversals.
